Subscriber Management¶

Subscribers are the end users of your IPTV service who get access to watch TV channels. The Catena system provides flexible subscriber management, their channel package subscriptions, and access control.

What is a Subscriber¶

A subscriber in Catena is a user account that has access to watch channels through connected packages.

Key capabilities:

SMS authentication — primary login method for subscribers via code sent to phone
Subscription management — connecting and disconnecting channel packages
Access control — automatic channel access management based on subscriptions
Playback tokens — unique tokens for authorization during viewing
Activity monitoring — tracking viewing sessions and subscriber activity

Typical workflow:

Create subscriber account with phone number
Connect channel packages to subscriber
Subscriber receives SMS with login code for the app
After login, subscriber gets access to all channels from their packages
System automatically manages access rights based on active subscriptions

Main Subscriber Parameters¶

Technical Parameters¶

Subscriber ID

Automatically generated when creating a subscriber
Format: base64-encoded Snowflake ID with +/= replaced by -_.
Example: aKl9SW3AAAE.
Used for programmatic access via API
Not editable after creation

Portal ID

Identifier of the portal the subscriber belongs to
Automatically set upon creation
Subscriber can only access channels and packages from their portal

Personal Information¶

Subscriber Name

Display name or user identifier
Can be full name, nickname, or identifier from external system
Used for display in management interface
Examples: "John Doe", "user123", "Apartment 42"

Phone Number (Phone)

Subscriber's phone number without country code
Used for SMS authentication — the primary login method
Digits only, no spaces or special characters
Validation pattern: ^[0-9]*$
Examples: 2345678901, 9161234567

Country Code (Phone Country Code)

Phone country code without plus sign
Used together with phone field to form complete number
Digits only
Validation pattern: ^[0-9]*$
Examples: 1 (USA), 44 (UK), 7 (Russia)

Complete phone number is formed as: +{phoneCountryCode}{phone}

Example: phoneCountryCode: "1" + phone: "2345678901" = +12345678901

Access Parameters¶

Playback Token

Unique token for authorization during video playback
Generated automatically by the system
Used by streaming server to verify access rights
Transmitted to app after successful authentication
Can be regenerated if needed

Package List (Packages)

Array of channel package identifiers the subscriber is connected to
Read-only field — displays current active subscriptions
Updated automatically when packages are connected/disconnected
Determines which channels the subscriber has access to
Example: ["pKl9SW3AAAE.", "bKl9SW3AAAE."]

Subscriber Authentication¶

SMS Login (Primary Method)¶

Catena uses SMS authentication as the primary login method for subscribers. This provides:

Ease of use — no need to remember passwords
Security — one-time codes tied to phone
Convenience — quick registration and login
Fraud protection — phone as authentication factor

SMS login process:

Subscriber enters phone number in the app
System sends SMS with one-time code to the specified number
Subscriber enters code from SMS in the app
System verifies code and issues access token
Subscriber gets access to watch channels from their packages

Important: Phone number is the unique identifier of the subscriber in the system. Ensure numbers are entered correctly when creating accounts.

Automatic Subscriber Creation¶

The system can automatically create subscriber accounts on first login attempt via SMS if this feature is enabled in portal settings. This allows for self-service user registration.

Creating a Subscriber¶

Via Web Interface¶

Open the "Subscribers" section in the Catena control panel
Click the "Create Subscriber" button
Fill in required fields:
Name — subscriber name or identifier
Phone Country Code — country code (e.g., 1 for USA)
Phone — phone number without country code
Save the subscriber
Connect packages via subscription management section

After creation, the subscriber will receive a unique ID and can login to the system via SMS.

Via Management API¶

curl -X POST https://your-catena-domain.com/tv-management/api/v1/subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "John Doe",
    "phoneCountryCode": "1",
    "phone": "2345678901"
  }'

Response:

{
  "subscriberId": "sKl9SW3AAAE.",
  "portalId": "pKl9SW3AAAE.",
  "name": "John Doe",
  "phoneCountryCode": "1",
  "phone": "2345678901",
  "playback_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
  "packages": []
}

Viewing Subscriber List¶

Via Web Interface¶

The "Subscribers" section displays a table with all portal subscribers:

Name — subscriber name or identifier
Phone — complete phone number
Packages — number of connected packages
Last Activity — time of last login or viewing
Status — active/blocked
Actions — edit, package management, and delete buttons

Via Management API¶

Get list of all subscribers:

curl -X GET https://your-catena-domain.com/tv-management/api/v1/subscribers \
  -H "X-Auth-Token: your-api-key"

Response:

{
  "subscribers": [
    {
      "subscriberId": "sKl9SW3AAAE.",
      "portalId": "pKl9SW3AAAE.",
      "name": "John Doe",
      "phoneCountryCode": "1",
      "phone": "2345678901",
      "playback_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
      "packages": ["pKl9SW3AAAE.", "bKl9SW3AAAE."]
    },
    {
      "subscriberId": "tKl9SW3AAAE.",
      "portalId": "pKl9SW3AAAE.",
      "name": "Jane Smith",
      "phoneCountryCode": "1",
      "phone": "2345678902",
      "playback_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
      "packages": ["pKl9SW3AAAE."]
    }
  ],
  "next": "cursor-for-next-page"
}

Pagination:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/subscribers?cursor=cursor-for-next-page" \
  -H "X-Auth-Token: your-api-key"

Getting Subscriber Information¶

Via Management API¶

curl -X GET https://your-catena-domain.com/tv-management/api/v1/subscribers/sKl9SW3AAAE. \
  -H "X-Auth-Token: your-api-key"

Response: Similar to subscriber object from the list.

Editing a Subscriber¶

Via Web Interface¶

Open the subscriber list
Find the needed subscriber and click the "Edit" button
Change parameters:
Name — subscriber name
Phone Country Code — country code
Phone — phone number
Save changes

Note: When changing phone number, subscriber will need to re-authenticate via SMS with the new number.

Via Management API¶

curl -X PUT https://your-catena-domain.com/tv-management/api/v1/subscribers/sKl9SW3AAAE. \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "John Michael Doe",
    "phoneCountryCode": "1",
    "phone": "2345678901"
  }'

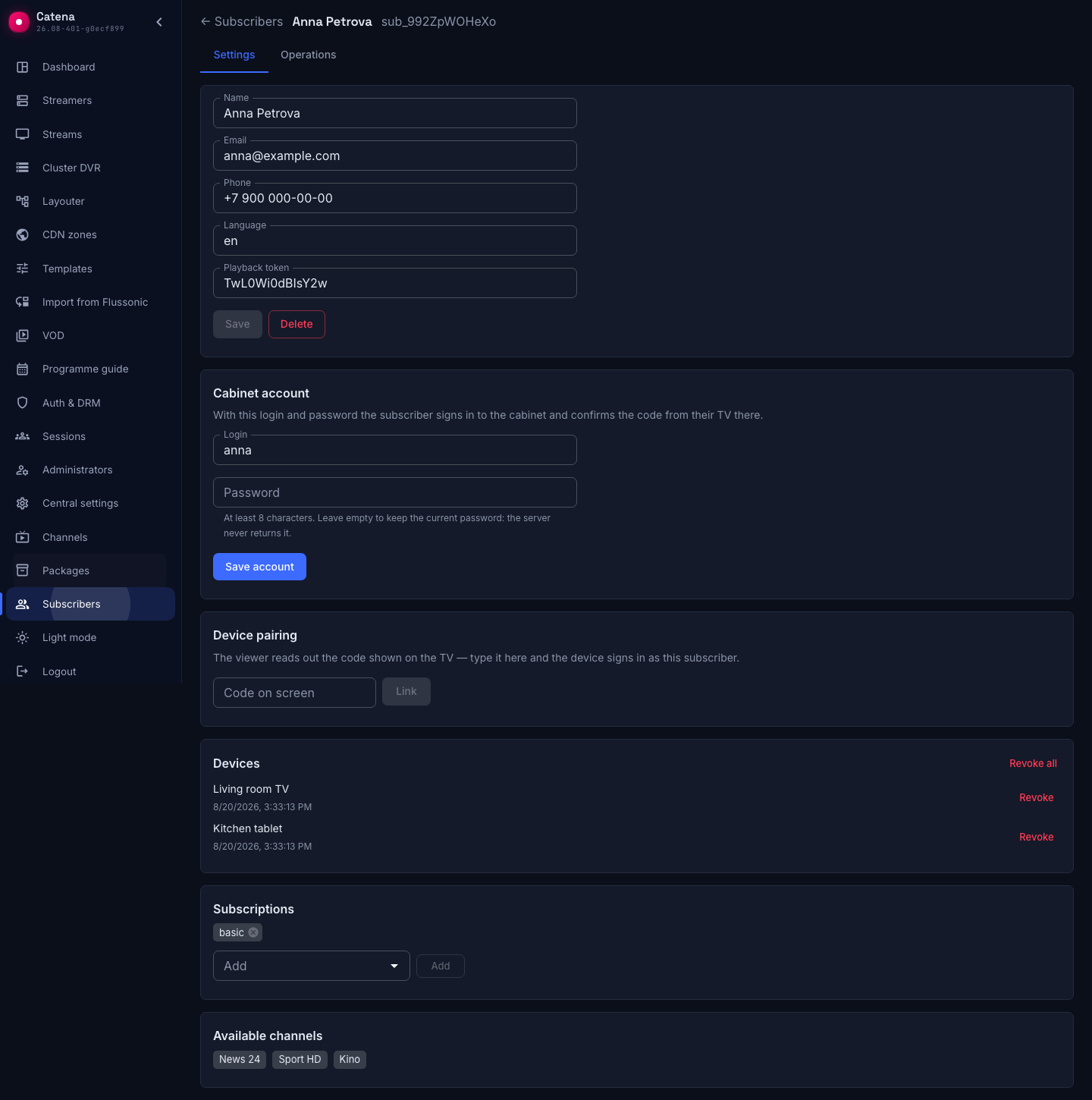

Managing Package Subscriptions¶

Connecting Package to Subscriber¶

Via Web Interface:

Open subscriber card
Go to "Packages" section
Click "Add Package"
Select package from available list
Confirm addition

The subscriber immediately gets access to all channels from the added package.

Via Management API:

curl -X POST https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "subscriberId": "sKl9SW3AAAE.",
    "packageId": "pKl9SW3AAAE."
  }'

Response:

{
  "subscriberId": "sKl9SW3AAAE.",
  "packageId": "pKl9SW3AAAE.",
  "portalId": "pKl9SW3AAAE."
}

Disconnecting Package from Subscriber¶

Via Web Interface:

Open subscriber card
Go to "Packages" section
Find package in active list
Click "Remove"
Confirm disconnection

The subscriber immediately loses access to all channels from the disconnected package.

Via Management API:

curl -X DELETE https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "subscriberId": "sKl9SW3AAAE.",
    "packageId": "pKl9SW3AAAE."
  }'

Bulk Subscription Management¶

For bulk connecting or disconnecting packages use loops or scripts. Example of adding a package to multiple subscribers:

#!/bin/bash
SUBSCRIBERS=("sKl9SW3AAAE." "tKl9SW3AAAE." "uKl9SW3AAAE.")
PACKAGE_ID="pKl9SW3AAAE."

for SUBSCRIBER_ID in "${SUBSCRIBERS[@]}"; do
  curl -X POST https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
    -H "X-Auth-Token: your-api-key" \
    -H "Content-Type: application/json" \
    -d "{
      \"subscriberId\": \"$SUBSCRIBER_ID\",
      \"packageId\": \"$PACKAGE_ID\"
    }"
done

Deleting a Subscriber¶

Via Web Interface¶

Open the subscriber list
Find the subscriber to delete
Click "Delete" button
Confirm deletion

Warning: When deleting a subscriber:

Account will be completely deleted
All package subscriptions will be cancelled
Viewing history will be preserved for analytics
Subscriber will lose access to watch channels
Account recovery will be impossible

Via Management API¶

curl -X DELETE https://your-catena-domain.com/tv-management/api/v1/subscribers/sKl9SW3AAAE. \
  -H "X-Auth-Token: your-api-key"

Monitoring Subscriber Activity¶

Viewing Playback Sessions¶

Catena automatically registers all channel viewing sessions by subscribers. This allows tracking activity, channel popularity, and identifying issues.

Get sessions for specific subscriber:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/play-sessions?subscriberId=sKl9SW3AAAE." \
  -H "X-Auth-Token: your-api-key"

Get only active sessions:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/play-sessions?subscriberId=sKl9SW3AAAE.&active=true" \
  -H "X-Auth-Token: your-api-key"

Filter by time:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/play-sessions?subscriberId=sKl9SW3AAAE.&opened_at_gte=1714233600&opened_at_lt=1714320000" \
  -H "X-Auth-Token: your-api-key"

Response:

{
  "sessions": [
    {
      "sessionId": "sessKl9SW3AAAE.",
      "subscriberId": "sKl9SW3AAAE.",
      "channelId": "chKl9SW3AAAE.",
      "channelName": "sport1",
      "portalId": "pKl9SW3AAAE.",
      "openedAt": 1714233600,
      "closedAt": 1714237200,
      "active": false,
      "bytes": 5242880000,
      "ip": "192.168.1.100",
      "userAgent": "VLC/3.0.16"
    }
  ],
  "next": "cursor-for-next-page"
}

Operations Log¶

All changes in subscriber accounts (creation, deletion, subscription changes) are recorded in the operations log.

Get operations for a subscriber:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/operations?subscriberId=sKl9SW3AAAE." \
  -H "X-Auth-Token: your-api-key"

Filter by operation type:

curl -X GET "https://your-catena-domain.com/tv-management/api/v1/operations?subscriberId=sKl9SW3AAAE.&type=createPackageSubscriber" \
  -H "X-Auth-Token: your-api-key"

Response:

{
  "operations": [
    {
      "operationId": "opKl9SW3AAAE.",
      "type": "createSubscriber",
      "subscriberId": "sKl9SW3AAAE.",
      "portalId": "pKl9SW3AAAE.",
      "createdAt": "2024-10-16T10:00:00Z",
      "payload": {
        "name": "John Doe",
        "phone": "+12345678901"
      }
    },
    {
      "operationId": "opKl9SW3AAAB.",
      "type": "createPackageSubscriber",
      "subscriberId": "sKl9SW3AAAE.",
      "packageId": "pKl9SW3AAAE.",
      "portalId": "pKl9SW3AAAE.",
      "createdAt": "2024-10-16T10:05:00Z",
      "payload": {
        "packageId": "pKl9SW3AAAE."
      }
    }
  ],
  "next": "cursor-for-next-page"
}

Typical Use Cases¶

Creating New Subscriber with Basic Package¶

Task: Register a new subscriber and connect basic package

Steps:

Create subscriber account via API
Get subscriberId from response
Connect basic package via packages-subscribers API
Subscriber receives SMS to login to app
After login, subscriber sees channels from basic package

Example script:

#!/bin/bash

# 1. Create subscriber
RESPONSE=$(curl -s -X POST https://your-catena-domain.com/tv-management/api/v1/subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "New Subscriber",
    "phoneCountryCode": "1",
    "phone": "2345678901"
  }')

# 2. Extract subscriber ID
SUBSCRIBER_ID=$(echo $RESPONSE | jq -r '.subscriberId')

# 3. Connect basic package
curl -X POST https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d "{
    \"subscriberId\": \"$SUBSCRIBER_ID\",
    \"packageId\": \"basic-package-id\"
  }"

echo "Subscriber created with ID: $SUBSCRIBER_ID"

Upgrading Subscriber to Premium Package¶

Task: Move subscriber from basic to premium package

Option 1: Add premium to basic

# Subscriber will get access to channels from both packages
curl -X POST https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "subscriberId": "sKl9SW3AAAE.",
    "packageId": "premium-package-id"
  }'

Option 2: Replace basic with premium

# First disconnect basic
curl -X DELETE https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "subscriberId": "sKl9SW3AAAE.",
    "packageId": "basic-package-id"
  }'

# Then connect premium
curl -X POST https://your-catena-domain.com/tv-management/api/v1/packages-subscribers \
  -H "X-Auth-Token: your-api-key" \
  -H "Content-Type: application/json" \
  -d '{
    "subscriberId": "sKl9SW3AAAE.",
    "packageId": "premium-package-id"
  }'

Integration with Billing System¶

Task: Automatically manage subscriptions based on payments

Concept:

Billing system tracks subscriber payments
On successful payment, billing calls Catena API to connect package
On subscription expiry, billing disconnects package via API
Catena automatically manages channel access

Example webhook from billing:

import requests

def on_payment_success(subscriber_phone, package_name):
    # 1. Find subscriber by phone
    subscribers = requests.get(
        f"https://catena.example.com/tv-management/api/v1/subscribers",
        headers={"X-Auth-Token": "your-api-key"}
    ).json()

    subscriber = next(
        s for s in subscribers['subscribers']
        if f"+{s['phoneCountryCode']}{s['phone']}" == subscriber_phone
    )

    # 2. Connect paid package
    requests.post(
        "https://catena.example.com/tv-management/api/v1/packages-subscribers",
        headers={"X-Auth-Token": "your-api-key"},
        json={
            "subscriberId": subscriber['subscriberId'],
            "packageId": get_package_id(package_name)
        }
    )

def on_subscription_expired(subscriber_phone, package_name):
    # Similar, but via DELETE
    pass

Bulk Subscriber Migration¶

Task: Migrate subscribers from old system to Catena

Steps:

Export subscriber data from old system (CSV/JSON)
Create bulk import script via API
Create accounts in Catena
Connect corresponding packages
Notify subscribers about transition to new system

Example import script:

import csv
import requests

API_URL = "https://catena.example.com/tv-management/api/v1"
API_KEY = "your-api-key"

def import_subscribers(csv_file):
    with open(csv_file, 'r') as f:
        reader = csv.DictReader(f)
        for row in reader:
            # Create subscriber
            response = requests.post(
                f"{API_URL}/subscribers",
                headers={"X-Auth-Token": API_KEY},
                json={
                    "name": row['name'],
                    "phoneCountryCode": row['country_code'],
                    "phone": row['phone']
                }
            )

            subscriber_id = response.json()['subscriberId']

            # Connect packages
            for package_id in row['packages'].split(','):
                requests.post(
                    f"{API_URL}/packages-subscribers",
                    headers={"X-Auth-Token": API_KEY},
                    json={
                        "subscriberId": subscriber_id,
                        "packageId": package_id.strip()
                    }
                )

            print(f"Imported: {row['name']} ({subscriber_id})")

import_subscribers('subscribers.csv')

Best Practices¶

Managing Phone Numbers¶

Recommendations:

Input validation — verify number format before sending to API
Uniqueness — one phone number = one subscriber
International format — store country code and number separately
Number change — require confirmation via SMS to new number
Deactivation — promptly update data when operator disconnects number

Security¶

Protecting playback tokens:

Don't transmit playback_token to third parties
Use HTTPS for all API requests
Regularly update tokens if compromise suspected
Log access attempts with invalid tokens

Access control:

Limit number of simultaneous sessions per subscriber
Track suspicious activity (different IPs, different devices)
Block subscribers upon fraud detection

Subscription Management¶

Recommendations:

Smooth transition — notify about subscription changes in advance
Automation — integrate with billing for automatic management
Free packages — use portal free packages for demo content
Trial periods — temporarily connect premium packages for trial
Change history — use operations log for audit

Subscriber Communication¶

When to send notifications:

Upon account creation
Upon subscription changes
Upon paid period expiry
Upon phone number change
Upon access blocking

Communication channels:

SMS — for login codes and critical notifications
Email — for informational newsletters (if available in your system)
Push notifications — via mobile app
In-app messages — upon app login

Troubleshooting¶

Possible causes:

Phone number incorrectly specified during registration
SMS not delivered (carrier issues)
Code from SMS expired
Phone number blocked in SMS gateway

Solution:

Check phone number in subscriber account
Ensure number format is correct (+country_code + number)
Check SMS gateway logs for message delivery
Try sending SMS again
If SMS doesn't arrive — check SMS gateway balance and settings

Subscriber Doesn't See Channels¶

Possible causes:

Subscriber has no connected packages
Packages contain no channels
Playback token expired or invalid
Technical issues with streaming server

Solution:

Check package list in subscriber's packages field
Ensure packages contain channels
Verify channels are active and working
Regenerate playback_token if needed
Check streaming server logs

Errors When Connecting Package¶

Possible causes:

Package already connected to subscriber
Incorrect packageId or subscriberId specified
Package and subscriber belong to different portals
Package doesn't exist or deleted

Solution:

Check subscriber's current packages via GET /subscribers/{id}
Ensure package and subscriber IDs are correct
Verify package exists via GET /packages/{id}
Ensure portalId matches for package and subscriber

Duplicate Phone Numbers¶

Problem: Attempt to create subscriber with existing number

Solution:

API should return error when creating duplicate
Check for subscriber with such number before creation
Use UPDATE instead of CREATE for existing subscribers
Implement phone number search in your interface

Subscriber Management¶

What is a Subscriber¶

Main Subscriber Parameters¶

Technical Parameters¶

Personal Information¶

Access Parameters¶

Subscriber Authentication¶

SMS Login (Primary Method)¶

Automatic Subscriber Creation¶

Creating a Subscriber¶

Via Web Interface¶

Via Management API¶

Viewing Subscriber List¶

Via Web Interface¶

Via Management API¶

Getting Subscriber Information¶

Via Management API¶

Editing a Subscriber¶

Via Web Interface¶

Via Management API¶

Managing Package Subscriptions¶

Connecting Package to Subscriber¶

Disconnecting Package from Subscriber¶

Bulk Subscription Management¶

Deleting a Subscriber¶

Via Web Interface¶

Via Management API¶

Monitoring Subscriber Activity¶

Viewing Playback Sessions¶

Operations Log¶

Typical Use Cases¶

Creating New Subscriber with Basic Package¶

Upgrading Subscriber to Premium Package¶

Integration with Billing System¶

Bulk Subscriber Migration¶

Best Practices¶

Managing Phone Numbers¶

Security¶

Subscription Management¶

Subscriber Communication¶

Troubleshooting¶

Subscriber Cannot Login via SMS¶

Subscriber Doesn't See Channels¶

Errors When Connecting Package¶

Duplicate Phone Numbers¶

See Also¶
